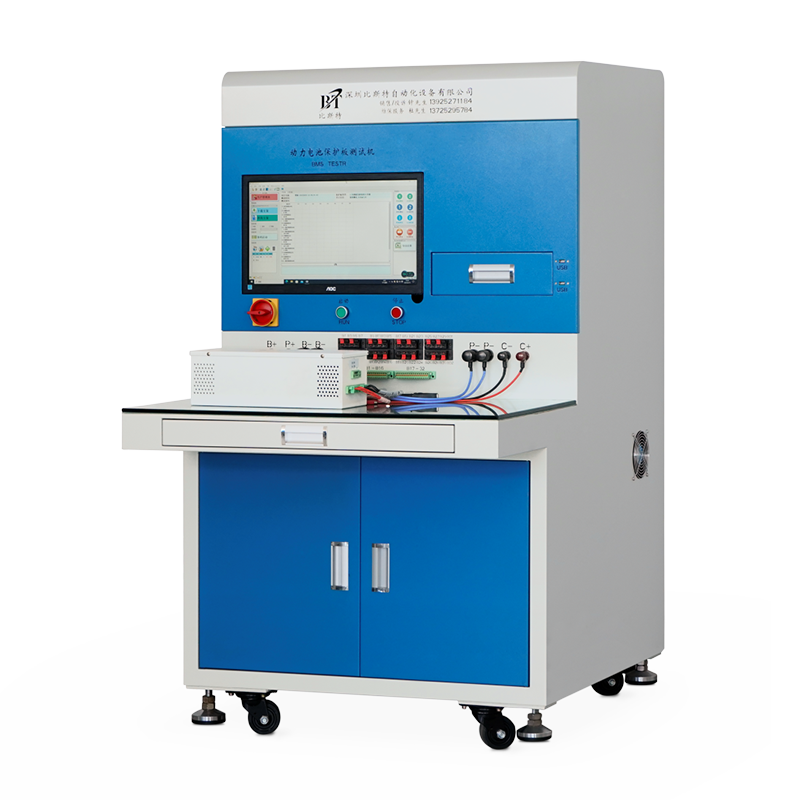

BT-24 Series Lithium Battery Protection Board Tester
2025-11-20 14:49:37
Product features：
BT Mull-unction Protection Board testing system is mainly used to test whether the Power Battery Protection Board is within the parameters range,thus providing a set of testing standards for the staf.The utility model is mainly used for testing the power battery protection plate of the power battery manufacturers as well as the power battery manufacturers
一、Main function
BT Mull-unction Protection Board testing system is mainly used to test whether the Power Battery Protection Board is within the parameters range,thus providing a set of testing standards for the staf.The utility model is mainly used for testing the power battery protection plate of the power battery manufacturers as well as the power battery manufacturers
二、Product parameters
Parameters | Test Range | Precision | Overdischarge protection curent | 0-120A/0-200A | ±0.1A | |||
Number of test strings | 1-24串 | Equalizing open voltage | 0-5V | ±5mV | ||||
Reference Voltage | Temary lithium(3.8V), Lithium iron phosphate(3.0V) | Equalizing real time current | 0-1000mA | ±1mA | ||||
Overcurent protection delay | 0-15S | ±1mS | ||||||
Overcharge protection voltage | 0-5V | ±5mV | Overcharge protection delay | 0-20S | ±1mS | |||
Discharge protection voltage | 0-5V | ±5mV | Overdischarge protection delay | 0-20S | ±1mS | |||
Overcharge Recovery Voltage (self-recovery) | 0-5V | ±5mV | Total self-consumption | 0-10mA | ±5uA | |||
Single secion selfconsumptve power | 0-500uA | ±1uA | ||||||
Discharge Recovery Voltage (self-recovery) | 0-5V | ±5mV | ||||||
Loop Resistance | 0-500mΩ | ±1mΩ | ||||||
Overcharge protection current | 0-50A | ±0.1A | Short Circuit Protecion (over 10 senies) | 0-9999us | ±1uS | |||
